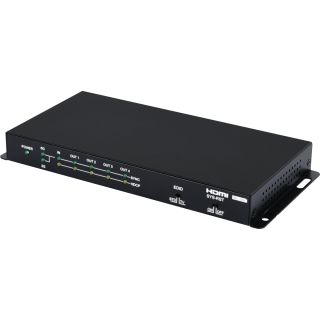

UHD+ 1x4 HDMI Splitter - Cypress CPLUS-V4T

UHD+ 1x4 HDMI Splitter - Cypress CPLUS-V4T

Artikelnummer: CPLUS-V4T
HAN: CPLUS-V4T
Kategorie: Splitters
Hersteller: Cypress Technology

This 4K UHD HDMI Splitter with HDCP 2.2 is an advanced solution providing high performance audio and video support including HDR ...

234,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This 4K UHD HDMI Splitter with HDCP 2.2 is an advanced solution providing high performance audio and video support including HDR and other features defined by the HDMI 2.0a specification. 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be passed along to 4 outputs. Pass-through of multiple digital audio formats such as LPCM 7.1, Bitstream and advanced HD Bitstream with audio sampling rates up to 192kHz are also supported. An independent HDCP management engine for each output ensures stable HDCP performance. When a mixture of displays with different specifications are connected, each output will automatically scale 4K to 1080p or apply color space conversion (4:4:4 to 4:2:0), as appropriate, based on each connected display’s EDID. Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays is also included. This unit is controllable via simple front-panel switches with easy to read informational LEDs.

Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video signals
Supports current 10-bit and 12-bit HDR (High Dynamic Range) formats
Supports pass-through of LPCM 7.1, Bitstream and advanced HD Bitstream audio formats
Automatic 4K to 1080p down-scaling and color space conversion (4:4:4 to 4:2:0) for each independent output based on each connected display’s EDID
Independent HDCP management engine for each output ensures stable HDCP performance
Simple to use EDID management options
Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays
Controllable via front-panel switches

Interfaces
Input Port	1 HDMI (Type A)
Output Port	4 HDMI
Service Port	1 USB (Mini B)

Video
HDMI Compliance	2.0
HDCP Compliance	2.X
Input Signal Types	4K@60 8-bit YUV 4:4:4, HDR10
Output Saignal Type	4K@60 8-bit YUV 4:4:4, HDR10

Resolutions
Maximum Input	4096×2160p@60 YUV 4:4:4 8 bit
Maximum Output	4096×2160p@60 YUV 4:4:4 8 bit

Audio
	HDMI	LPCM (8 CH), Bitstream, HD Bitstream

Power
Power Supply	5V/2.6A DC (Locking)
Power Consumption	3.08W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×30mm×117mm [All Inclusive]
Weight	608g

Field Firmware Update
Interface	USB to PC

Ordering Information
Model No.	Product Description
CPLUS-V4T	UHD+ 1x4 HDMI Splitter
