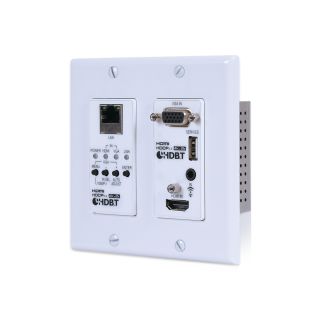

UHD+ 2×1 HDMI/VGA to HDBaseT Scaler (PD) with Event Automation (US 2-Gang Wallplate) - Cypress CH-2538STXWPUD

UHD+ 2×1 HDMI/VGA to HDBaseT Scaler (PD) with Event Automation (US 2-Gang Wallplate) - Cypress CH-2538STXWPUD

Artikelnummer: CH-2538STXWPUD
HAN: CH-2538STXWPUD
Kategorie: Extenders
Hersteller: Cypress Technology

This 4K UHD Wallplate Scaler is an HDMI/VGA switch with audio embedding and scaled HDBaseT output. The wallplate is designed for ...

617,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This 4K UHD Wallplate Scaler is an HDMI/VGA switch with audio embedding and scaled HDBaseT output. The wallplate is designed for use with US twogang sized enclosures. This Transmitter can send high definition uncompressed audio/video along with Ethernet over a single cable up to a distance of 100 meters. To provide maximum compatibility with a wide range of display types, all sources are scaled to a user-selected resolution and timing (up to 4K@30Hz) for transmission over HDBaseT.

Signal management features such as automatic switching based on input signal and hot plug detection enable convenient hands-free operation. Control buttons on the face of the unit provide access to an OSD menu as well as allowing quick, single button press, manual input selection. Additional functionality such as EDID management, HDCP management and basic signal event automation (which can send customized RS-232 commands to external devices automatically) is also available.

The unit is controllable via front panel controls with an OSD or RS-232 (via the RS-232 port on a compatible Receiver).

Wallplates designed for US two-gang sized enclosures
HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, and PoH (PD)
HDBaseT output transmits video, audio, and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K when using Cat.6a/7
Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
Supports CEC bypass
Unit may be powered locally or via 48V PoH from a compatible HDBaseT Receiver (PSE)
Supports manual input selection or automatic input selection with hot plug detection
Basic signal event automation (via RS-232 w/ compatible Receiver)
Controllable via a front panel buttons with OSD, or RS-232 (w/ compatible Receiver only)

Interfaces
Input Port	1 HDMI (Type-A) 1 VGA (HD-15) 1 Unbalanced Stereo (3.5mm)
Output Port	1 HDBaseT (RJ-45)
Pass-through Port	1 LAN (RJ-45)
Service Port	1 USB (Type-A)

Video
HDMI Compliance	2.0
HDCP Compliance	2.x
Input Signal Type	4K@60 8-bit YUV 4:4:4
Output Signal Types	4K@60 8-bit YUV 4:2:0
Resolutions
Maximum Input	HDMI	4096×2160p@60
VGA	1920×1200p@60RB
Maximum Output	HDBaseT	4096×2160p@30

Audio
Input Signal Types	HDMI, Unbalanced Stereo
Output Signal Types	HDBaseT
Digital Formats	HDMI	7.1CH LPCM Bitstream, HD Bitstream
HDBaseT	7.1CH LPCM Bitstream, HD Bitstream
Analog Formats	Unbalanced	2 CH
Specs	Conditions
Line Level	Frequency Response	< ±3dB (20Hz to 20kHz)
THD+N	< 0.02% (20Hz to 20kHz)
S/N Ratio	> 90dB (1kHz with 0dBFS)
Crosstalk	< −70dB (10kHz, Vin=0dBFS)

Power
Power Supply	PoH or 12V/3A
Power Consumption	18.26W

Enclosure
Chassis Material	Aluminum
Chassis Color	White
Dimensions (W×H×D)	91.8mm×104mm×50mm [Case Only] 91.8mm×104mm×54mm [All Inclusive]
Weight	232g

Field Firmware Update
USB Flash Drive

ORDERING INFORMATION

Model No.	Product Description
CH-2538STXWPUD	UHD+ 2×1 HDMI/VGA to HDBaseT Scaler (PD) with Event Automation (US 2-Gang Wallplate)
CH-2527RX	HDMI over HDBaseT Receiver with LAN, PoH, IR, RS-232
