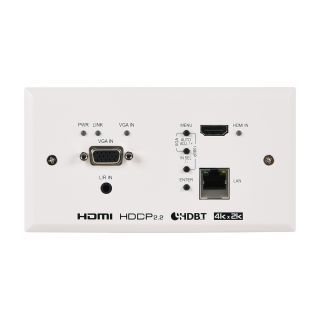

UHD 2x1 HDMI/VGA over HDBaseT Wallplate Scaler (EU 2-Gang) - Cypress CH-2538STXWPEU

UHD 2x1 HDMI/VGA over HDBaseT Wallplate Scaler (EU 2-Gang) - Cypress CH-2538STXWPEU

Artikelnummer: CH-2538STXWPEU
HAN: CH-2538STXWPEU
Kategorie: Extenders
Hersteller: Cypress Technology

This 4K UHD Wallplate Scaler is an HDMI/VGA switch with audio embedding and scaled HDBaseT output. The wall plate is designed fo ...

710,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This 4K UHD Wallplate Scaler is an HDMI/VGA switch with audio embedding and scaled HDBaseT output. The wall plate is designed for use with EU twogang sized enclosures. It is suitable for various installation requirements with aesthetic considerations. The HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit). The VGA input supports resolutions up to WUXGA (RB) and with the use of the associated 3.5mm audio input, stereo audio may be embedded as well. To provide maximum compatibility with a wide range of display types, all sources are scaled to a user-selected resolution and timing (up to 4K@30Hz) for transmission over HDBaseT. This unit also supports automatic input selection between the HDMI and VGA inputs, with hot plug detection, enabling hands-free operation. Additionally, the unit may be powered locally or via 48V PoH (Power over HDBaseT) from a compatible HDBaseT Receiver, which allows for greater flexibility in installations. The unit is controllable via front panel controls with an OSD or RS-232 (via the RS-232 port on a compatible Receiver).

Supports VGA input resolutions up to WUXGA (RB)
Simultaneous transmission of uncompressed video, audio and data over a single 100m Cat.5e/6/7 cable at 1080p and 70m at 4K
Automatic input selection with hot plug detection enabling hands- free operation
Unit may be powered locally or via 48V PoH (PD) from a compatible HDBaseT Receiver (PSE)
Wall plate is designed for EU two-gang sized enclosures
Front panel LEDs indicate input selection, power and link status

Interfaces
Input Port	1 HDMI (Type-A) 1 VGA (HD-15) 1 Stereo Audio (3.5mm)
Output Port	1 HDBaseT (RJ45)
Control I/O	1 LAN (RJ-45)
Service Port	1 USB 2.0 (Type-A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	HDMI	4K@60 8-bit YUV 4:4:4
	VGA	1920x1080p@60Hz
Output Signal Type	HDBaseT	4K@30 8-bit YUV 4:4:4

Resolutions
Maximum Input	HDMI	4096×2160p@60
	VGA	1920×1200@60
Maximum Output	HDBaseT	4096×2160p@30

Power
Power Consumption	22W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black/Silver
Dimensions (W×H×D)	152mm× 81mm× 42mm [Case Only] 152mm× 81mm× 53mm [All Inclusive]
Weight	263g

Field Firmware Update
Interfaces	USB

Ordering Information
Model No.	Product Description
CH-2538STXWPEU	UHD 2x1 HDMI/VGA over HDBaseT Wallplate Scaler (EU 2-Gang)
CH-2527RX	UHD HDMI over HDBaseT RECEIVER with IR, RS- 232, LAN & PoH (PSE)
