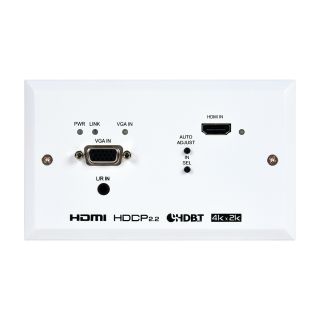

UHD 2x1 HDMI/VGA over HDBaseT Wallplate Transmitter (EU 2-Gang) - Cypress CH-2538TXPLWPEU

UHD 2x1 HDMI/VGA over HDBaseT Wallplate Transmitter (EU 2-Gang) - Cypress CH-2538TXPLWPEU

Artikelnummer: CH-2538TXPLWPEU
Kategorie: Extenders
Hersteller: Cypress Technology

This wallplate is an HDMI/VGA switch with audio embedding and HDBaseT output. The wall plate is designed for use with EU two- ga ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

This wallplate is an HDMI/VGA switch with audio embedding and HDBaseT output. The wall plate is designed for use with EU two- gang sized enclosures. It is suitable for various installation requirements with aesthetic considerations. The HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit). The VGA input supports resolutions up to WUXGA (RB) and with the use of the associated 3.5mm audio input, stereo audio may be embedded as well. To provide maximum compatibility with a wide range of display types, all sources will be automatically scaled to match the preferred resolution and timing of the connected display (as reported by the display’s EDID). Despite HDBaseT’s 10.2Gbps bandwidth limitation, even 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit), can be supported by converting the signal to 4K@30Hz when necessary.

This unit also supports automatic input selection between the HDMI and VGA inputs, with hot plug detection, enabling hands-free operation. Additionally, the unit may be powered locally or via 48V PoH (Power over HDBaseT) from a compatible HDBaseT Receiver, which allows for greater flexibility in installations. It is controllable via front panel buttons and RS-232 (remote only). Front panel LEDs indicate input selection, power and link status.

Automatic scaling of sources to match the native resolution of the HDMI display based on EDID
HDBaseT feature support: HD Video and Audio, 48V PoH, and Control (Ethernet bypass)
Simultaneous transmission of uncompressed video, audio and data over a single 70m Cat.5e/6/7 cable at 1080p and 35m at 4K
Automatic input selection with hot plug detection enabling handsfree operation
Unit may be powered locally or via 48V PoH (PD) from a compatible HDBaseT Receiver (PSE)
Controllable via front panel buttons and RS-232 (remote only)
Front panel LEDs indicate input selection, power and link status

Interfaces
Input Port	1 HDMI (Type-A) 1 VGA (HD-15) 1 Stereo Audio (3.5mm)
Output Port	1 HDBaseT (RJ45)
Service Port	1 USB 2.0 (Type-A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	HDMI	4K@60 8-bit YUV 4:4:4
	VGA	1920x1080p@60Hz
Output Signal Type	HDBaseT	4K@60 8-bit YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096×2160p@60
	VGA	1920x1200@60RB
Maximum Output	HDBaseT	4096×2160p@30

Power
Power Consumption	11.5W

Enclosure
Chassis Material	Aluminum
Chassis Color	White
Dimensions (W×H×D)	152mm× 81mm× 42mm [Case Only] 152mm× 81mm× 53mm [All Inclusive]
Weight	258g

Field Firmware Update
Interfaces	USB Flash Drive

Ordering Information
Model No.	Product Description
CH-2538 TXPLWPEU	UHD 2x1 HDMI/VGA over HDBaseT Wallplate Transmitter (EU 2-Gang)
CH-2527RXPL	4K HDR HDMI over HDBaseT Receiver with IR, RS-232, PoH (PSE)
