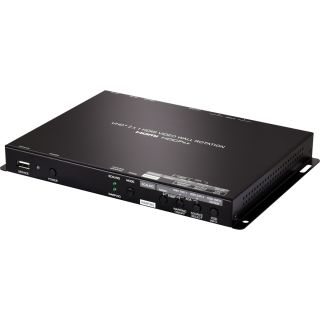

UHD+ 2x1 HDMI Video Wall Rotation Processor - Cypress CPLUS-2H1HLR

UHD+ 2x1 HDMI Video Wall Rotation Processor - Cypress CPLUS-2H1HLR

Artikelnummer: CPLUS-2H1HLR
HAN: CPLUS-2H1HLR
Kategorie: Scaler
Hersteller: Cypress Technology

This HDMI Video Wall Rotation Processor is capable of scaling and rotating the input source to nearly any angle and size desired ...

871,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDMI Video Wall Rotation Processor is capable of scaling and rotating the input source to nearly any angle and size desired. It’s the ideal solution for presenting sources across the unique video display arrangements often found in commercial displays, control rooms, or classrooms. HDMI Input and output resolutions up to 4K@60Hz with LPCM 2ch audio. In Rotation Mode the unit is capable of scaling and rotating the source, with an accuracy of 1°, as required. In Scaling Mode, the unit can scale to a selection of output resolutions, up to 4k@60Hz as well as apply video mirror, flip freeze effects and multi-view to the output.

By combining multiple units with an HDMI splitter or matrix it is possible to create fantastically varied arrangements of rotated displays for large video wall applications. This is perfect for creating distinct and eye-catching advertising or promotional displays limited only by your imagination. Configuring these large video walls is made simple by use of our Video Wall PC application, allowing the user to visually lay out and configure the entire video wall at one time in a graphical WYSIWYG (what you see is what you get) user interface. A number of common video wall arrangement presets are included with the software by default to make it possible to get started quickly. Basic control of the unit is provided by front panel controls with an informational OSD. Complete control of the unit is accomplished by use of Telnet, RS-232 or the Video Wall PC software.

Two source are selectable and supports horizontal/vertical video rotation with zooming in/out and 360 degree display rotation in 1° increments (Rotation Mode)
Supports Video mirror, flip, freeze and multi-view (Scaling Mode)
Wide variety of video adjustments, including: contrast, brightness, hue, sharpness, aspect ratio
Custom EDID management

Interfaces
Input Port	2×HDMI (Type-A)
Output Port	1×HDMI (Type-A)
Control I/O	1×RS-232 (3.5mm) 1×IP Control (RJ-45)
Service Port	1 USB (Type-A)

Video
HDMI Compliance	2.0 (DVI 1.0)
HDCP Compliance	2.2
Input Signal Types	4K@60 8bit YUV 4:4:4
Output Signal Types	4K@60 8bit YUV 4:4:4
		Resolutions
Maximum Input	HDMI	4096x2160p@60
Maximum Output	HDMI	4096x2160p@60

Audio
HDMI Input 1,2	LPCM (2 Channels, 48KHz), Bitstream
HDMI Output	LPCM (2 Channels, 48KHz), Bitstream

Power
Power Supply	24V/2.7A DC
Power Consumption	23W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×158mm [Case Only] 231.5mm×25mm×161mm [All Inclusive]
Weight	945g

Field Firmware Update
	PC Update, WebGUI

ORDERING INFORMATION

Model No.	Product Description
CPLUS-2H1HLR	UHD+ 2x1 HDMI Video Wall Rotation Processor
