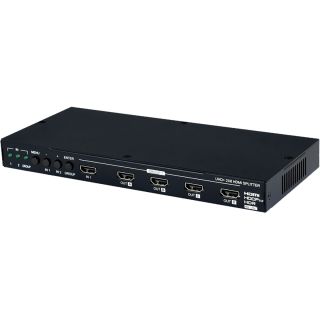

UHD+ 2x8 HDMI Splitter - Cypress CPLUS-V8PT

UHD+ 2x8 HDMI Splitter - Cypress CPLUS-V8PT

Artikelnummer: CPLUS-V8PT
HAN: CPLUS-V8PT
Kategorie: Splitters
Hersteller: Cypress Technology

This 4K UHD Switching Splitter with HDCP 2.2 is an advanced solution providing high performance audio and video support includin ...

321,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This 4K UHD Switching Splitter with HDCP 2.2 is an advanced solution providing high performance audio and video support including HDR and other features defined by the HDMI 2.0a specification. 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be passed along to the 8 outputs. Pass-through of multiple digital audio formats such as LPCM 7.1, Bitstream and advanced HD Bitstream with audio sampling rates up to 192kHz are also supported. An independent HDCP management engine for each output ensures stable HDCP performance. This splitter also includes a special “Group Mode” which allows the unit to function as two independent 1×4 splitters. When Group Mode is enabled, each of the 2 HDMI inputs are routed to their own discrete set of 4 outputs. When a mixture of displays with different specifications are connected, each output can be configured to scale 4K to 1080p or apply color space conversion (4:4:4 to 4:2:0), as appropriate. Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays is also included. This unit provides an intuitive set of front panel controls with an OSD as well as RS-232 control options.

8 output HDMI splitter with 2 selectable inputs and automatic input switching support
Special “Group Mode” allows the unit to function as two independent 1×4 splitters in a single box
Supports pass-through of LPCM 7.1, Bitstream and advanced HD Bitstream audio formats
Per-output, selectable, 4K to 1080p down-scaling/color space conversion (4:4:4 to 4:2:0)
Independent HDCP management engine for each output ensures stable performance
Supports eight internal EDIDs, eight external EDIDs copied from connected devices, and two user provided EDIDs
Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays
Controllable via front-panel buttons with OSD and RS-232

Interfaces
Input Port	2 HDMI (Type A)
Output Port	8 HDMI (Type A)
Control I/O	1 RS-232 [3-pin Terminal Block] 1 USB [Mini-B]

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 8bit YUV 4:4:4, HDR 12
Output Saignal Type	4K@60 8bit YUV 4:4:4, HDR 12

Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Audio
	Digital Format	HDMI LPCM(8CH), Bitstream, HD Bitstream

Power
Power Supply	5V/3A DC
Power Consumption	9.57W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	240mm×24mm×103mm [Case Only] 240mm×25mm×103mm [All Inclusive]
Weight	616g

Field Firmware Update
Interface	PC

Ordering Information
Model No.	Product Description
CPLUS-V8PT	UHD+ 2x8 HDMI Splitter
