UHD+ 8x2 HDMI Matrix Module with eARC - Cypress CPLUS-V8H2H

UHD+ 8x2 HDMI Matrix Module with eARC - Cypress CPLUS-V8H2H

Artikelnummer: CPLUS-V8H2H
HAN: CPLUS-V8H2H
Kategorie: Matrixes
Hersteller: Cypress Technology

The AVR board has been developed to comply with the advanced HDMI 2.1 and HDCP 2.2 protocols with eARC supported. Eight HDMI inp ...

537,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

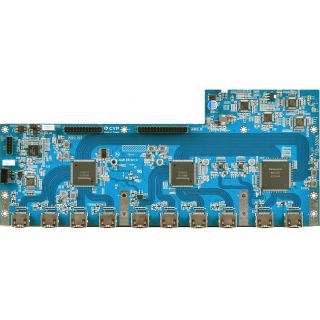

The AVR board has been developed to comply with the advanced HDMI 2.1 and HDCP 2.2 protocols with eARC supported. Eight HDMI inputs may be routed to two HDMI outputs providing flexible configurations in order to fit different scenarios. The HDMI inputs and outputs support HDMI signals up to 18Gbps (600 MHz) including 12-bit color and HDR. Beyond the 600MHz multi-channel video routing this module also features audio breakaway functions (audio insertion and extraction) which can be a valuable addition to any AV product, such as amplifiers, speakers, sound bars, home theater systems, etc. The audio signal goes through via standard I2S. Many audio formats are supported, including LPCM up to 7.1 as well as Bitstream formats. This module also handles EDID management. This module offers AV designers and manufacturers the ability to improve their existing products by adding advanced features in a cost and time effective manner. Existing or under-design products can be easily upgraded with an HDMI interface or a single HDMI interface can be expanded to multiple interfaces. This module’s dimensions and connections are optimized for easy integration. The module contains an API source code to assist in development for the host microprocessor. All functions, including video routing, audio breakaway, EDID management pass-through and HDCP handing will be managed by this embedded module.

eARC feature supported
Supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
Supports Deep Color input and output up to 12-bit
Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
Supports EDID function pass-through
Audio insertion supported through I²S 2 channels or S/PDIF
Audio extraction supported through I²S 8 channels or S/PDIF
Support for many audio formats, including LPCM up to 7.1 and Bitstream
Audio manufactures won’t need to waste effort researching and implementing advanced HDMI & HDCP protocol handling; existing audio products can be upgraded to support these advanced protocols in an easy way
Compact embedded module design for OEM/ODM integration within customized advices with HDMI interfaces , especially ideal for audio devices such as sound bar and amplifier

Interfaces
Input Port	8 HDMI (Type-A)
Output Port	2 HDMI (Type-A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	3840x2160p@60 8bit YUV 4:4:4, HDR 12 3840x2160p@60 12 bit YUV 4:2:0 1080p@60 16-bit
Output Signal Type	43840x2160p@60 8bit YUV 4:4:4, HDR 12 3840x2160p@60 12 bit YUV 4:2:0 1080p@60 16-bit

Resolutions
Maximum Output	HDMI	4096×2160p@60
Maximum Output	HDMI	4096x2160p@60 YUV 4:4:4

Audio
Digital Formats		8CH LPCM, Bitstream, High bitrate

Power
Power Supply	24V/2.6A
Power Consumption	17W

Enclosure
Dimensions (W×H×D)	279mmx 30mmx 119mm
Weight	168

Ordering Information
Model No.	Product Description
CPLUS-V8H2H	UHD+ 8x2 HDMI Matrix Module with eARC
