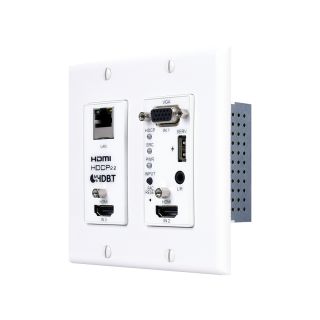

UHD HDMI/VGA over HDBaseT Wallplate Transmitter(PD) - Cypress CH-2537TXWPUD

UHD HDMI/VGA over HDBaseT Wallplate Transmitter(PD) - Cypress CH-2537TXWPUD

Artikelnummer: CH-2537TXWPUD
HAN: CH-2537TXWPUD
Kategorie: Extenders
Hersteller: Cypress Technology

This HDBaseT Wall Plate Switch with signal management is an HDMI and VGA switch with audio embedding and HDBaseT output. The wal ...

540,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDBaseT Wall Plate Switch with signal management is an HDMI and VGA switch with audio embedding and HDBaseT output. The wall plate is designed for use with US two-gang sized enclosures. This Switcher can send uncompressed high-definition video/audio over a single cable up to a distance of 100 meters at 1080p@60Hz. Signal management features such as automatic switching based on input signal and hot plug detection enable hands-free operation. Additional functionality such as EDID management, HDCP management and basic signal event automation which can send customized RS-232 or CEC commands to external devices automatically is also available.

Wall plate is designed for US two-gang sized enclosures
Supports HDMI input resolutions up to 4K@60Hz (4:4:4, 8-bit)
Supports VGA input resolutions up to WUXGA (RB)
Supports CEC bypass and User activated information OSD
Unit may be powered locally or via 48V PoH from a compatible HDBaseT Receiver (PSE)
Supports manual input selection or automatic input selection with hot plug detection
Basic signal event automation (via RS-232 or CEC w/ compatible Receiver)
USB port supports firmware update and powering of 5V/500mA devices

Interfaces
Input Port	2 HDMI (Type-A) 1 VGA (HD-15) 1 Stereo Audio (3.5mm)
Output Port	1 HDBaseT (RJ-45) 1 LAN (RJ-45)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	HDMI	4K@60 8-bit YUV 4:4:4
Output Signal Type	Cat5./6/7	4K@60 8-bit YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096×2160p@60
	VGA	1920x1200@60
Maximum Output	HDBaseT	4096×2160p@30

Power
Power Supply	12V/3A
Power Consumption	23.7W

Enclosure
Chassis Material	Aluminum
Chassis Color	White
Dimensions (W×H×D)	92mm× 104mm× 50mm
Weight	250g

Ordering Information
Model No.	Product Description
CH-2537TXWPUD	UHD HDMI/VGA over HDBaseT Wallplate Transmitter (PD)
CH-2527RX	HDR HDMI over HDBaseT Receiver with IR, RS-232, LAN & PoH (PSE)
