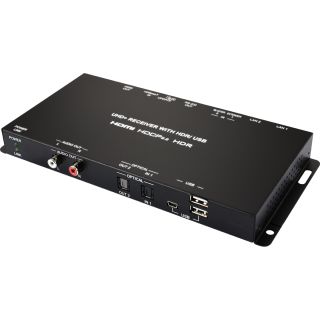

UHD+ HDMI over HDBaseT Receiver with HDR/USB - Cypress CH-1604RXD

UHD+ HDMI over HDBaseT Receiver with HDR/USB - Cypress CH-1604RXD

Artikelnummer: CH-1604RXD
HAN: CH-1604RXD
Kategorie: Extenders
Hersteller: Cypress Technology

This HDBaseT 2.0 Transmitter and Receiver set provides for the extension of 4K video with HDR and high bitrate audio over a sing ...

520,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDBaseT 2.0 Transmitter and Receiver set provides for the extension of 4K video with HDR and high bitrate audio over a single Cat.6a/7 cable at distances of up to 100 meters (328 feet). This extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. Through the use of the highly efficient, and visually lossless, DSC compression scheme, high bandwidth signals, previously unsupported by HDBaseT, such as 4K@60Hz (4:4:4, 8-bit) or 4K@24Hz (4:4:4, 12-bit, HDR) can be extended without visual compromise or additional latency! These extenders can also pass RS-232, IR, Ethernet, and multiple audio streams across the same cable that carries the video signal. This system also allows for the extension of USB signals between any standard USB host (such as a PC or laptop) on one side to up to 2 USB ports on the other side. This both extends the USB port while simultaneously providing USB hub functionality making this an ideal KVM solution when the PC is housed in a distant control room, or secure server room. The 48V PoH (Power over HDBaseT) design can power the Receiver (PD) from the Transmitter (PSE), eliminating the need for a separate power supply for the Receiver.

Simultaneous transmission of video, audio and data over a single Cat.6/7 cable up to 100 meters (328 feet)
HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, USB 2.0, 48V PoH and Control (Bi-directional IR/RS-232 pass-through)
RS-232 baud rates from up to 115200bps are supported
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream via HDMI
Supports bi-directional pass-through of digital optical audio formats including LPCM 2.0 at audio sampling rates up to 48kHz, and Bitstream via Optical (S/ PDIF) connections
Supports pass-through of analog stereo audio from the Transmitter to the Receiver via stereo RCA connections
2 USB Type A ports and 1 USB Mini B (on Transmitter and Receiver) for extension of USB devices including mice, keyboards, webcams or digital storage
Supports standard 48V PoH from Transmitter (PSE) to Receiver (PD) (compatible Receivers only)

Interfaces
Input Port	1 HDBaseT (RJ-45) 1 S/PDIF (TOSLINK)
Output Port	1 HDMI (Type-A) 1 S/PDIF (TOSLINK) 1 Stereo (2×RCA)
Pass-through Ports	1 IR Extender (3.5mm) 1 IR Blaster (3.5mm) 1 RS-232 (DE-9) 2 LAN (RJ-45) 1 USB (Mini-B) 2 USB (Type-A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 8-bit YUV 4:4:4,HDR
Output Signal Type	4K@60 8-bit YUV 4:4:4,HDR

Resolutions
Maximum Input	HDBaseT	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Power
Power Supply	48V PoH
Power Consumption	20W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×120mm [All Inclusive]
Weight	700g

Field Firmware Update
Interfaces	PC

Ordering Information
Model No.	Product Description
CH-1604RXD	UHD+ HDMI over HDBaseT Receiver with HDR/USB
CH-1604TXD	UHD+ HDMI over HDBaseT Transmitter with HDR/USB
