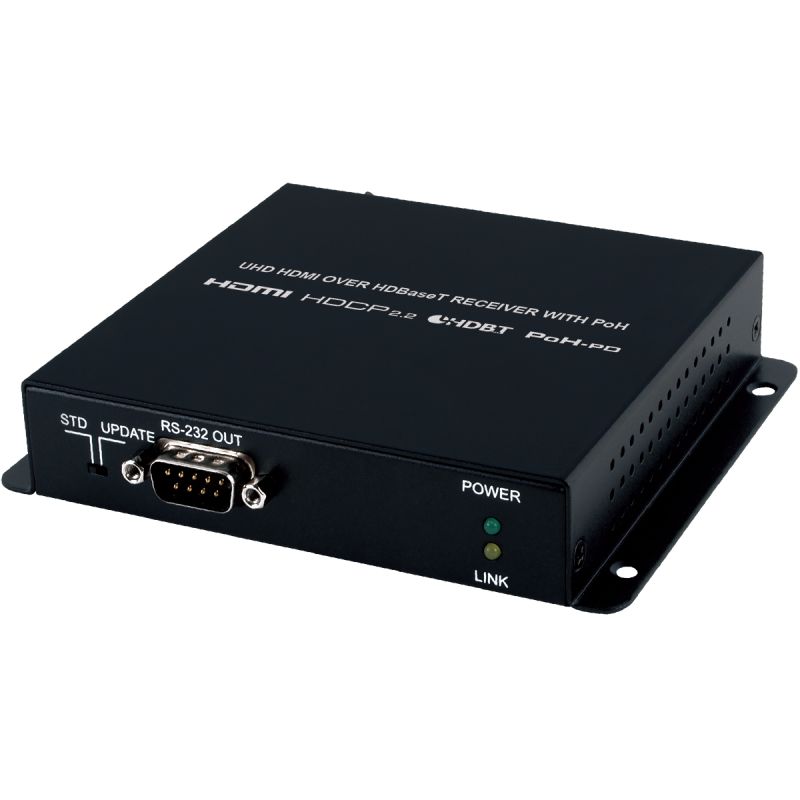

UHD HDMI over HDBaseT Receiver with PoH - Cypress CH-1527RXPL

UHD HDMI over HDBaseT Receiver with PoH - Cypress CH-1527RXPL

Artikelnummer: CH-1527RXPL
HAN: CH-1527RXPL
Kategorie: Extenders
Hersteller: Cypress Technology

The HDMI over single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video and IP data over a single run of C ...

248,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

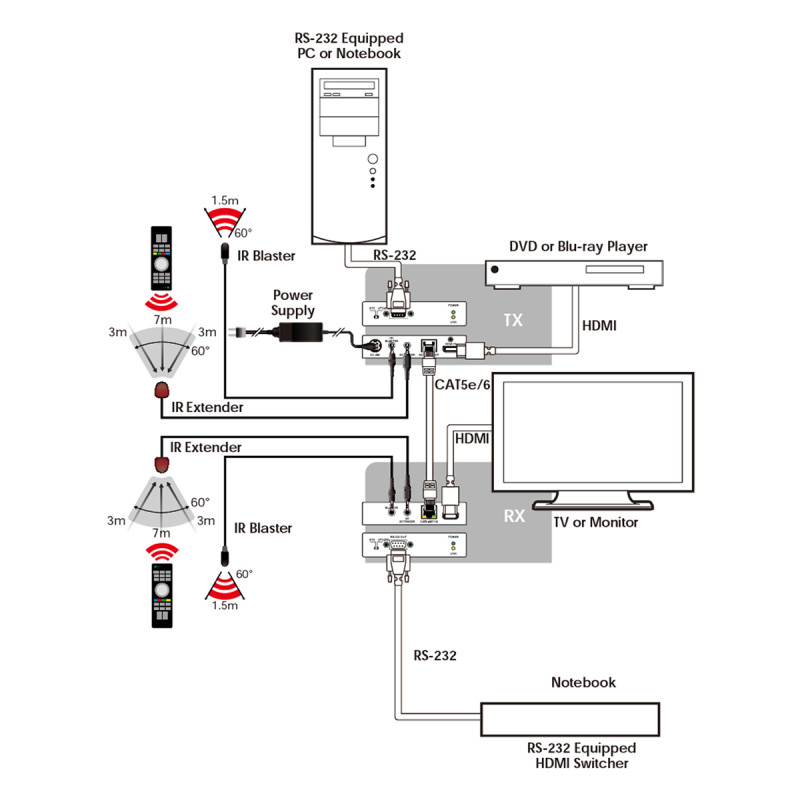

The HDMI over single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 60 meter. It has the added benefit of control through the builtin RS-232 and IR ports. The Receiver (PD) can be powered by the PoE 48V function of the Transmitter (PSE), allowing for greater flexibility in installations.

Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
RS-232 with baud rate up to 115200/sec
Supports wide range of IR frequency from 30~50kHz
HDMI with 3D, 4K2K support, HDMI & DVI Compliant
Supports CEC bypass
Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 60m
4Play™ convergence: HDMI, PoE & Control (IR & RS-2232)
Supports resolution up to 4K2K@50/60 & YUV_420 and 21:9
Supports standard 48V from Transmitter (PSE) to Receiver (PD)

Interfaces

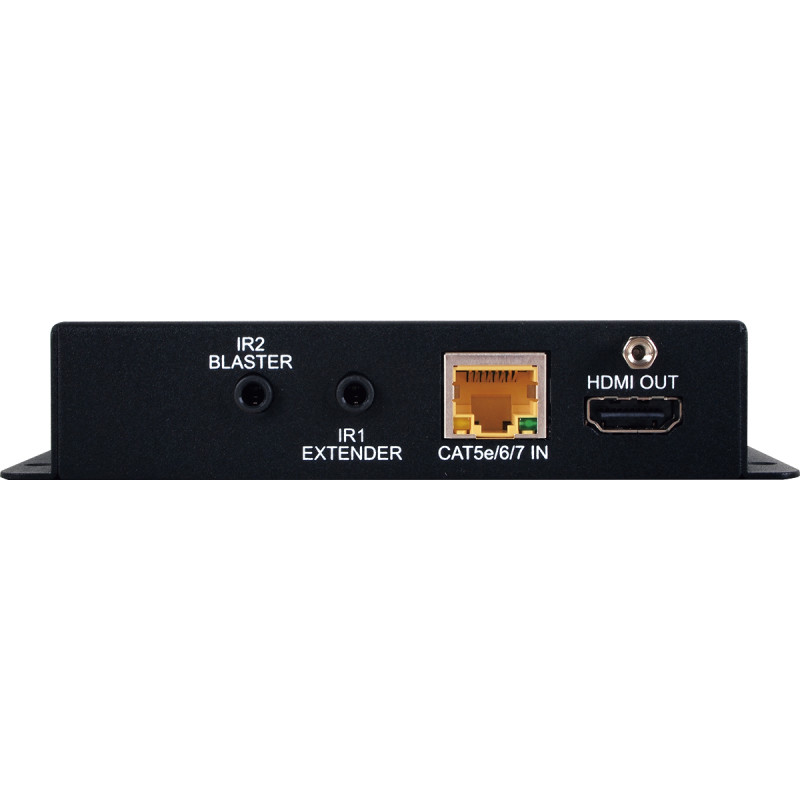

Input Port	1 x HDBaseT (RJ-45) 1 x IR Blaster(3.5mm)

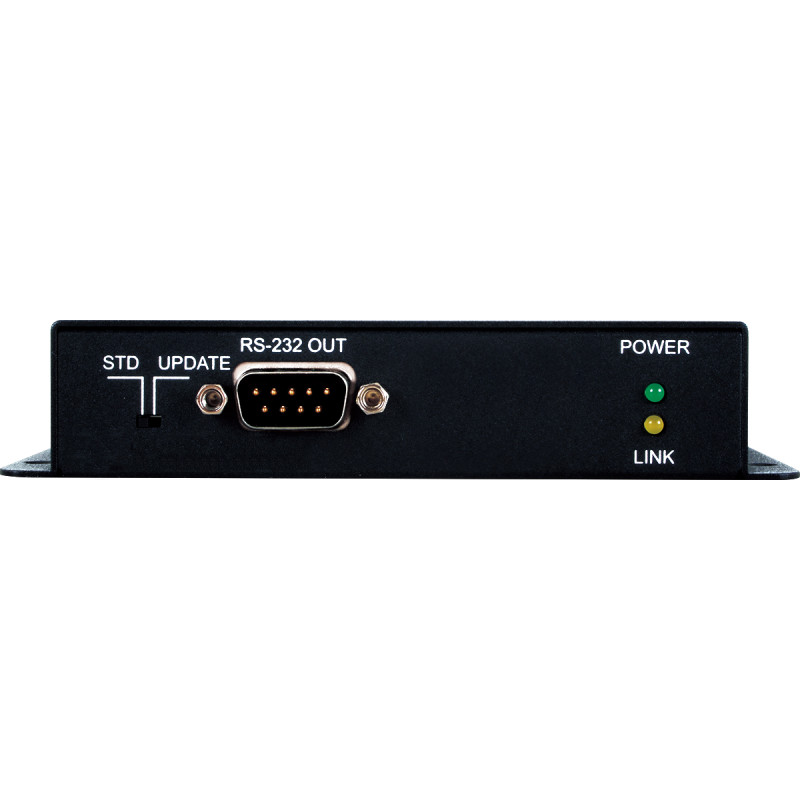

Output Port	1 x HDMI(Type-A) 1 x IR Extender(3.5mm) 1 x RS-232(DE-9)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:2:0

Resolutions
Maximum Input	HDBaseT6/7	4096×2160p@60 YUV 4:2:0
Maximum Output	HDMI	4096×2160p@60 YUV 4:2:0

Power
Power Supply	48 V/0.83 A DC (US/EU Standards, CE/FCC/ UL certified)
Power Consumption	13.5w (Max)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	108mm x 25mm x 108mm /Jacks Excluded 108mm x 29mm x 116mm /JacksIncluded
Weight	366g

Field Firmware Update
Interface	RS232

Ordering Information
Model No.	Product Description
CH-1527RXPL	UHD HDMI over HDBaseT Receiver with PoH
CH-1527TXPL	UHD HDMI over HDBaseT Transmitter with PoH
