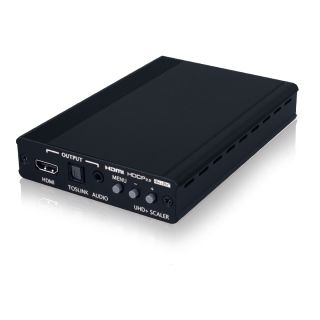

UHD+ HDMI to HDMI Scaler - Cypress CP-259UHD

UHD+ HDMI to HDMI Scaler - Cypress CP-259UHD

Artikelnummer: CP-259UHD
HAN: CP-259UHD
Kategorie: Scaler
Hersteller: Cypress Technology

This compact yet versatile HDMI to HDMI UHD Scaler accepts and outputs a wide range of resolutions up to 4K@60Hz (4:4:4, 8-bit) ...

439,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This compact yet versatile HDMI to HDMI UHD Scaler accepts and outputs a wide range of resolutions up to 4K@60Hz (4:4:4, 8-bit) with simultaneous audio embedding and de-embedding of digital (HDMI or optical) or analog audio. Integrated EDID and HDCP management options allow for control over the way connected sources and displays detect the unit. The scaled HDMI output is powered by a high quality single-pass scaling engine with the ability to adjust the image with a number of fine tuning options including: contrast, brightness, hue, saturation, sharpness, noise reduction, and RGB levels. 3-D motion adaptive de-interlacing and frame rate conversion is supported as well.

The HDMI input and output supports passing up to LPCM 7.1 digital audio as well as Bitstream and HD Bitstream audio formats. Audio embedding and deembedding is also available with the included digital optical and analog stereo audio inputs and outputs (LPCM 2.0 only). Shortcut keys are provided to quickly change the output resolution to 1080p@60Hz or XGA when needed for quick connection to a display or for troubleshooting purposes. This is an ideal device to integrate previously incompatible sources and displays in your boardroom, classroom, or home. This unit is controlled via a comprehensive On-Screen Display (OSD) menu that provides the user with easy access to all settings.

Scaled HDMI output supports resolutions from 640×480@60Hz up to 4096×2160p@60Hz (4:4:4, 8-bit)
Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream via HDMI
Supports audio embedding and de-embedding via digital optical and analog stereo audio inputs and outputs (LPCM 2.0 only)
Supports frame rate conversion, 3-D motion adaptive de-interlacing, and 3:2/2:2 pull-down detection and recovery
Supports video adjustments to contrast, brightness, hue, saturation,sharpness, RGB levels and aspect ratio
Integrated EDID and HDCP management
Controllable via front panel buttons with comprehensive OSD

Interfaces
Input Port	1 HDMI 1 Analog Stereo (3.5mm) 1 S/PDIF (TOSLINK)
Output Port	1 HDMI 1 Analog Stereo (3.5mm) 1 S/PDIF (TOSLINK)

Video
DVI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.x
Input Signal Type	4K@60 8bit YUV 4:44
Output Signal Types	4K@60 8bit YUV 4:44

Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	102mm×25mm×147mm [Case Only] 102mm×25mm×155.75mm [All Inclusive]
Weight	350g

Power
Power Supply	5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	11W

Field Firmware Update
Interface	USB

Ordering Information
Model No.	Product Description
CP-259UHD	UHD+ HDMI to HDMI Scaler
