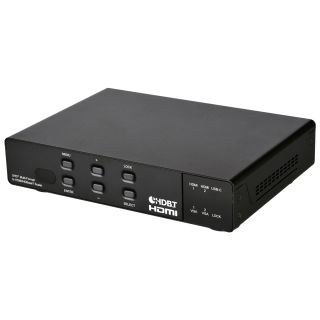

UHD Multi-Format to HDMI/HDBaseT Scaler - Cypress CSC-109TX

UHD Multi-Format to HDMI/HDBaseT Scaler - Cypress CSC-109TX

Artikelnummer: CSC-109TX
Kategorie: Scaler
Hersteller: Cypress Technology

This multi-format to HDMI/HDBaseT scaler provides switching between five inputs including HDMI, VGA, and USB-C. Any selected sou ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

This multi-format to HDMI/HDBaseT scaler provides switching between five inputs including HDMI, VGA, and USB-C. Any selected source will be scaled to your preferred resolution for output over HDMI and HDBaseT.

This unit contains an audio DSP engine with auto-mixer and auto-gain functionality, allowing for the microphone source to be mixed with the audio from one of the video sources with independent volume control over the microphone input.

This unit is an ideal solution for presentations in classrooms and conference rooms. Controllable via front panel controls with an OSD, WebGUI, Telnet, RS- 232, IR, and Trigger controls.

HDBaseT can reach distances up to 100m/328ft at 4K@60 4:2:0 when using Cat.6a/7
Supports pass-through of LPCM 2.0 digital audio
Supports audio embedding, de-embedding Microphone input supports 48V phantom power (optional)
Supports HDCP and EDID management

Interfaces
Input Port	2 HDMI IN 1 USB-C IN 2 VGA IN (HD-15) 3 LINE IN (Analog Stereo) (3.5mm) 1 MIC IN (6.5mm)
Output Port	1 HDMI 1 HDBaseT (RJ-45) 1 LINE OUT (3.5mm)
Pass-through Port	1 IR OUT(3.5mm) 1 IR IN(3.5mm) 1 RS-232 BYPASS (3.5mm)
Control I/O	1 RS-232 (DB-9) 1 LAN (RJ-45) 5 INPUT CONTROL (6-pin Terminal Block)
Service Port	1 SERVICE (USB (Type-A))

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.2
Input Signal Types	4K@60 YUV 4:4:4
Output Signal Types	4K@60 YUV 4:2:0
Resolutions
Maximum Input	HDMI USB-C VGA	4096×2160p@60 YUV 4:4:4 4096×2160p@60 YUV 4:4:4 1920×1200p@60RB
Maximum Output	HDMI	4096×2160p@60 YUV 4:4:4
HDBaseT	4096×2160p@60 YUV 4:2:0

Audio
HDMI	LPCM (8 Channels)
Line In	2 Vrms
Mic In	4 Vrms
Line Out	2Vrms Frequency Response: < ±1dB@20Hz~20kHz SNR: > 102dB@0dBFS Crosstalk:<-63dB@10kHz

Power
Power Supply	24V/5A DC (Locking)
Power Consumption	102W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	219mm×43mm×156mm [Case Only] 219mm×51mm×162mm [All Inclusive]
Weight	1308g
Rackmount Size	1U Half-Rack

Field Firmware Update
USB Flash Drive, WebGUI
