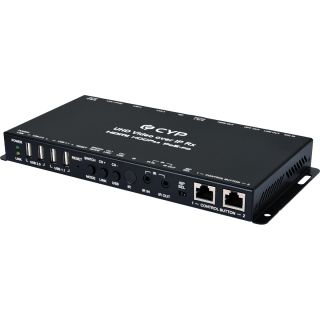

UHD Video over IP RX - Cypress NAV-U353RX

UHD Video over IP RX - Cypress NAV-U353RX

Artikelnummer: NAV-U353RX
Kategorie: Maritime and Naval Applications
Hersteller: Cypress Technology

NAV-U353RX is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI or VGA signals along with KVM usin ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

NAV-U353RX is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI or VGA signals along with KVM using the TCP/ IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Definition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. NAV-U353RX also allows you to send a single AV signal to a large number of Receivers within the same local network. Additionally, that same multicast signal can be used to create large multi-display video walls with amazing simplicity. This system is perfect for both residential and commercial installation environments.

Video, audio and control transmission over TCP/IP in Unicast (point-to-point) or Multicast (single-to-many) modes
Support with 0°, 180°, 270° increments rotation
The analog Line In on the Transmitter sends audio directly to the analog Line Out and is inserted into the HDMI output on connected Receivers
The Mic In on the Receiver sends audio directly to the analog Line Out on the Transmitter
Both Tx and Rx may be powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)
Supports USB keyboard, mouse and storage extension and IR ,RS-232 bypass
Unit can be controlled via WebGUI, Telnet, and front panel controls
Supports Key Control(show me function), can connect key pad through popular RJ-45 connector (key pad is optional)

Interfaces
Input Port	1×Analog Stereo (3.5mm)
Output Port	1×HDMI (Type-A) 1×S/PDIF (TOSLINK) 1×Analog Stereo (3.5mm)
Bi-Directional Port	3×GbE LAN (RJ-45)
Control I/O	2×USB2.0 (Type-A) 2×USB1.1 (Type-A) 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS232 (3-pin terminal block) 2×Control button(RJ-45)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	HDCP 2.x
Input Signal Type	4096x2160p@30 8bit RGB
Output Signal Type	4096x2160p@30 8bit RGB
Resolutions
Maximum Input	LAN (Streaming)	4096×2160p@30
Maximum Output	HDMI	4096×2160p@30

Audio
Digital Formats	HDMI	LPCM (8Channels), Bitstream, High Bit Rate Bitstream
Line Out/ Optical Out	LPCM (2Channels)
Line Level	Mic In	300 mVrms, S/N Ratio: > 80dB (1kHz with 0dBFS)
Line Out	2 Vrms, S/N Ratio: > 80dB (1kHz with 0dBFS)

Power
Power Supply	5V/ 4A DC (Locking) or PoE
Power Consumption	21.78W

Enclosure
Chassis Material	Metal(Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×120mm [All Inclusive]
Weight	660g

Field Firmware Update

WebGUI

ORDERING INFORMATION

Model No.	Product Description
NAV-U353RX	UHD Video over IP Rx
NAV-U350HTX	HDMI/VGA over IP Transmitter with USB/KVM Extension
NAV-CS7	IP Master Controller
ADP-059-SWAT	Switching Power Supply 5VDC/4A
CBL-IR10C3SA200	3.5ΦIR cable L:200cm 30-50KHz
CBL-E3.5IF-20A	3.5ΦIR cable(Blaster) 2725#28 L:200cm
TML-F7353-03	RS232 3-pin terminal block
CBL-MPBCAT-10	Key in cable (1M)
