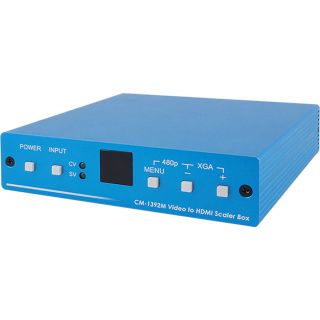

Video and L/R to HDMI Scaler Box - Cypress CM-1392M

Video and L/R to HDMI Scaler Box - Cypress CM-1392M

Artikelnummer: CM-1392M
HAN: CM-1392M
Kategorie: Scaler
Hersteller: Cypress Technology

The CM-1392M Video to HDMI Scaler Box is designed to scale CVBS and S-Video with R/L audio into HDMI. Supporting PC timings up t ...

224,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The CM-1392M Video to HDMI Scaler Box is designed to scale CVBS and S-Video with R/L audio into HDMI. Supporting PC timings up to WUXGA 1920 x 1200 at 60Hz and HD timings up to 1080p at 60Hz. Supporting the NTSC and PAL TV standards and allowing you to select the specific video timing through the OSD, this device has many features that enhance the quality of your videos.

Motion adaptive 3-D de-interlacing and 3D Y/C separation with CVBS input
Automatic 2: 2, 3 : 2 film mode detection & correction
Automatic NTSC/PAL video format detection and frame rate conversion (from 50Hz to 60Hz)
Automatic 3D noise reduction
Supports one dimensional CTI (Chroma Transient Improvement) and LTI (Luminance Transient Improvement) for edge improvement
OSD menu for picture quality adjustment
Supports HD timings from 480p@60 Hz to 1080i/p@60 Hz and PC timings from VGA@640x480 to WUXGA@1920x1200
Two ways to control the CM-1392M, either using an IR remote control or the control panel on the device

TMDS Clock Frequency	225Mhz
Color depth	8bits
Color space	YUV (HD), RGB (PC)
Input Signal Levels	Video@1Vp-p, 75Ω, Y@1Vp-p, 75Ω, C@0.7 Vp-p,
	75Ω
Input Ports	1 x Composite, 1 x S-Video, 1 x R/L
Output Port	1x HDMI
Audio Input Level	2Vrms (Full Scale)
Output Resolution	HD:	480p@60Hz, 576p@50 Hz, 720p@50/60 Hz,
		1080i@50 /60 Hz, 1080p@50/60 Hz
	PC:	VGA@640x480,
		SVGA@800x600, XGA@1024x768,
		WXGA@1360x768, WSXGA@1440x900,
		SXGA1280x1024, SXGA+@1400x1050,
		UXGA@1600x1200, WUXGA@1920x1200
Power Supply	5V/1A Linear power adaptor (US/EU standards, CE/FCC/UL certiﬁed) or 5V/1.2A Switching power adaptor (with universal plug CE/FCC/UL certiﬁed)
Weight (g)	400
Dimensions (mm)	125 (W) x 123 (D) x 30 (H)
Silkscreen Color	Process Blue
Operating Temperature	0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature	-20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity	20 ~ 90% RH (non-condensing)
Power Consumption (W)	4.1
