Wireless Presentation System, Entry Level Model (Lite) - Cypress WPS-QPL01

Wireless Presentation System, Entry Level Model (Lite) - Cypress WPS-QPL01

Artikelnummer: WPS-QPL01
Kategorie: Extenders
Hersteller: Cypress Technology

WPS-QPL01 (LT01/LR01) is an entry level modle of CYP WPS (Wireless Presentation System) product family. It is a powerful but low ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

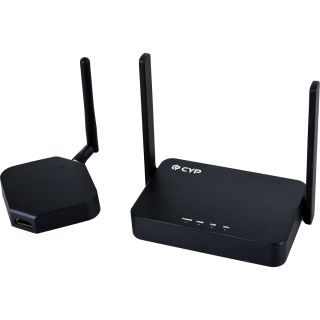

WPS-QPL01 (LT01/LR01) is an entry level modle of CYP WPS (Wireless Presentation System) product family. It is a powerful but low cost WiFi Presentation System product. It contains one transmitter(LT01) and one receiver (LR01). The plug & mirror capability makes it easier to use without learning curve. LT01 comes with high speed 802.11ac WiFi module and external antenna to bring you the great connection and smooth streaming. Through our advanced Receiver LR01, you can even use your mobile phone to cast without efforts, this will be the great entry-level product for WPS application.

No App required, just press one key to work with projector
High compatibility with iOS、Android、Windows、Mac
Support 1080P input
Support Output resolution up to 3840x2160@30Hz
5GHz Wi-Fi transmission.
Support Touch back, Google Cast and AirPlay

Interfaces

Receiver

Output Port

1 HDMI

Control I/O

1 USB (Type-A)

Video
HDMI Compliance	HDMI 1.4
HDCP Compliance	YES
Input Signal Types	802.11ac 5GHz
Output Signal Type	3840x2160p@30Hz
		Resolutions
Maximum Input	HDMI	3840x2160p@30Hz
HDMI	LPCM (2 Channel)

Power
Power Supply	DC-in 5V 2A
Power Consumption	10W max.

Enclosure
Chassis Material	Plastic
Chassis Color	Black
Dimensions (W×H×D)	135 x 127 x 80.2mm
Weight	106g

Interfaces

Transmitter

Input Port

1 HDMI

Control I/O

1 Micro USB (for power, paring)

Video
HDMI Compliance	HDMI 1.4 (DVI 1.0)
HDCP Compliance	YES
Input Signal Types	1920x1080p@60Hz
		Resolutions
Maximum Input	HDMI	1920x1080@60Hz
HDMI	LPCM (2 Channel)

Power
Power Supply	DC-in 5V 1A
Power Consumption	4.5W

Enclosure
Chassis Material	Plastic
Chassis Color	Black
Dimensions (W×H×D)	68 x 92.7 x 68mm with antenna
Weight	54g

ORDERING INFORMATION
Model No.	Product Description
WPS-QPL01	Hyshare Lite Wireless Presentation System (Package includes 1 Receiver and 1 Transmitter)
